Water

PVC Layflat

NORTH DAKOTA PART NUMBER
HPD
Application

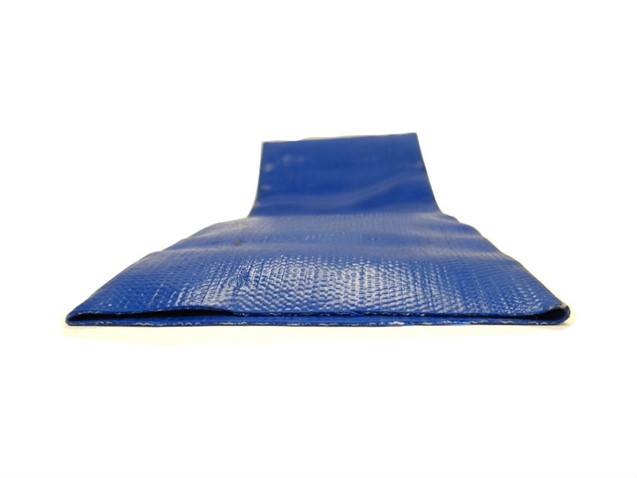

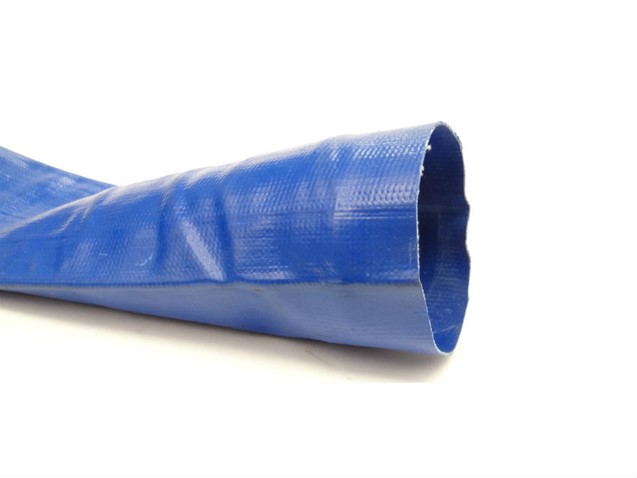

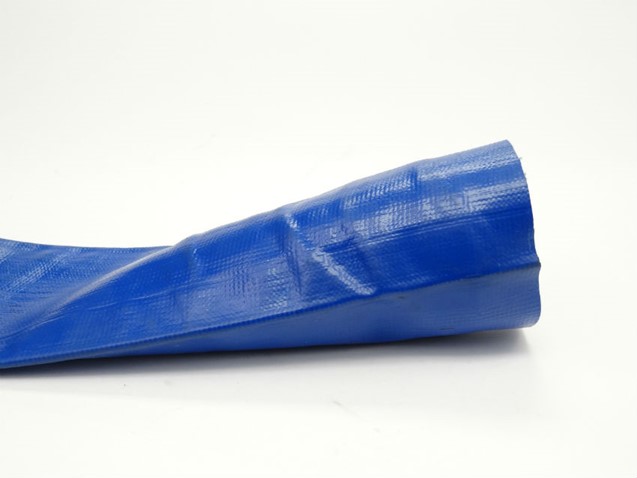

A light weight duty hose for portable pump and irrigation use. Hose folds flat for ease of coiling and handling. Designed for open end discharge only.
Construction
Tube- Blue PVC impregnation Reinforcement- Woven high tensile synthetic yarn Cover- Blue PVC impregnation
Temperature Range
-10°C to +60°C (+14°F to +140°F)
Part NumberI.D. InchesO.D. InchesMAX W.P. (PSI)Approx. Wt. Per. Ft. Lbs.
HPD1501-1/21.6700.18
HPD20022.11700.24
HPD2502-1/22.63600.28
HPD30033.14550.36
HPD40044.14500.5
HPD60066.15400.88
HPD80088.15351.1
HPD10001010.18352
