Material Handling

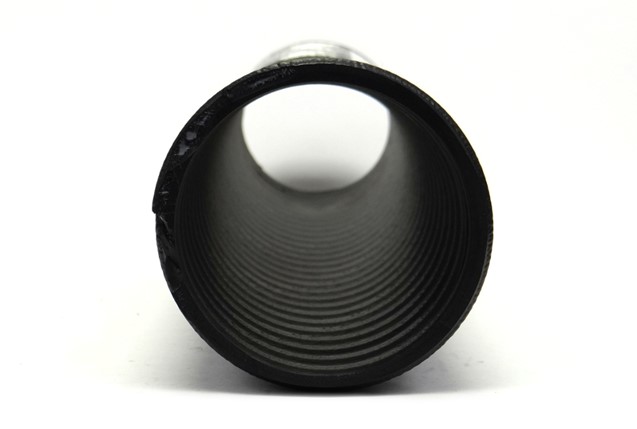

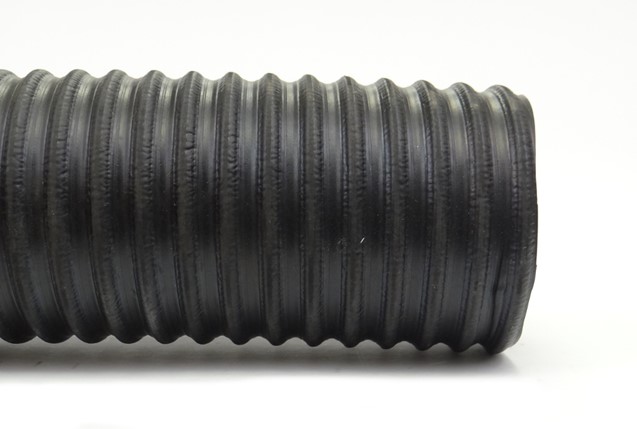

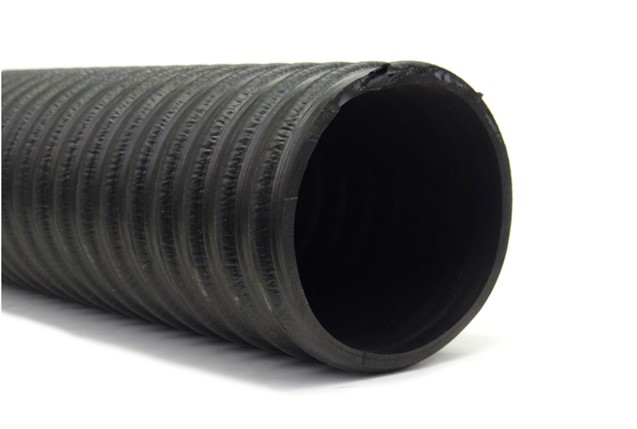

Grain Vac

NORTH DAKOTA PART NUMBER
HGV
Application
Suction and discharge of dry materials such as sand, crushed rock, cement etc. Suitable for full vacuum.
Construction
Tube- Black abrasion resistant, static conducting synthetic rubber. Reinforcement- Rigid black PVC helix. Cover- Corrugated black rubber
Temperature Range
-40°C to +60°C (-40°F to +140°F)
Part NumberI.D. InchesO.D. InchesMAX W.P. (PSI)Bend RadiusVacuum Rating (in HG) 68FApprox. Wt. Per. Ft. Lbs.
HGV1501-1/21.8245229.80.31
HGV20022.83402.529.80.50
HGV2502-1/22.87352.529.80.88
HGV30033.5035329.81.10
HGV40044.63304.529.81.77
HGV50055.63305282.47
HGV60066.73309.2283.08
HGV80089.043015275.65
