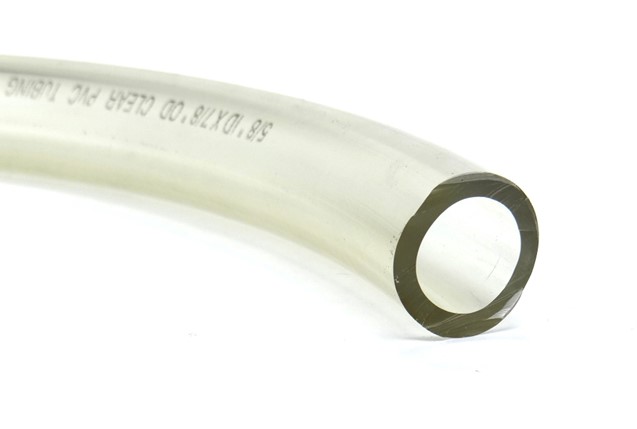

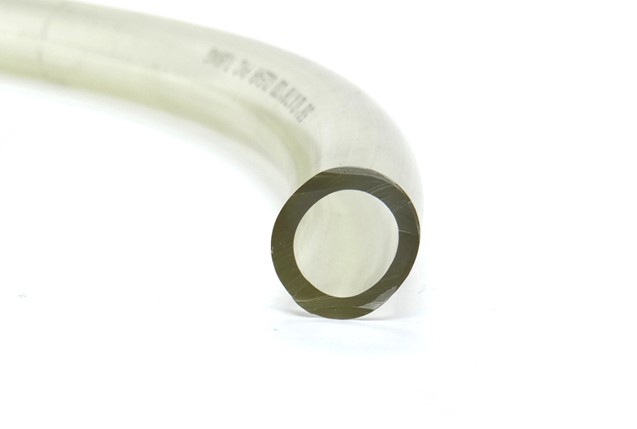

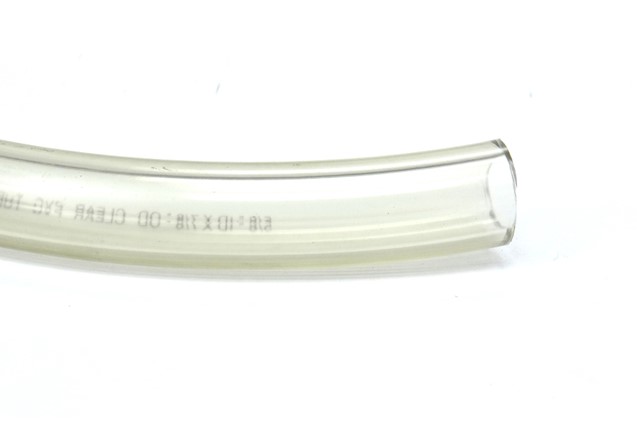

Clear Vinyl Tubing

NORTH DAKOTA PART NUMBER

HCV

Application

For handling liquids where clarity and flexibility are required

Construction

Tube- Crystal clear, non-toxic, odourless and taste free PVC compound. Cover- Crystal clear PVC

Temperature Range

-4°C to +35°C (+25°F to +150°F)

Part Number	I.D. Inches	O.D. Inches	MAX W.P. (PSI)	Wall Thickness (Inch)	Approx. Wt. Per. Ft. Lbs.
HCV012025	1/8	1/4	65	1/16	0.02
HCV018025	3/16	1/4	50	1/32	0.012
HCV018031	3/16	5/16	55	1/16	0.027
HCV025037	1/4	3/8	55	1/16	0.034
HCV025050	1/4	1/2	60	1/8	0.08
HCV031044	5/16	7/16	50	1/16	0.04
HCV037050	3/8	1/2	45	1/16	0.047
HCV037062	3/8	5/8	55	1/8	0.107
HCV050062	1/2	5/8	30	1/8	0.06
HCV050075	1/2	3/4	45	1/8	0.134
HCV062075	5/8	3/4	30	1/16	0.082
HCV062088	5/8	7/8	40	1/8	0.161
HCV075100	3/4	1	35	1/8	0.188
HCV088112	7/8	1-1/8	30	1/8	0.214
HCV100125	1	1-1/4	25	1/8	0.241
HCV100150	1	1-1/2	35	1/4	0.536
HCV125150	1-1/4	1-1/2	20	1/8	0.296
HCV150188	1-1/2	1-7/8	30	3/16	0.542
HCV150200	1-1/2	2	35	1/4	0.75
HCV200250	2	2-1/2	35	1/4	0.964
