Air

Polyair

NORTH DAKOTA PART NUMBER
HMPxxxPA-Colour
Application
A low temperature hose for air, water and mild water-soluble chemicals. Tube and cover are silicone free.
Construction

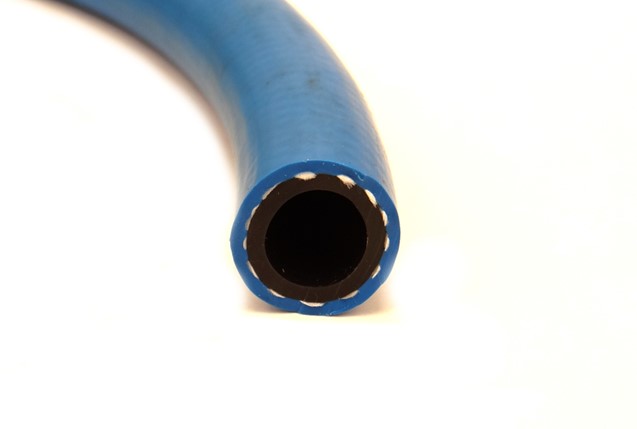

Tube- Black PVC. Reinforcement- Polyester yarn with additional longitudinal yarns to reduce elongation under pressure. Cover-PVC compounded in a variety of colours.
Temperature Range
-26°C to +65°C (+15°F to +150°F)
Colour
Red, Yellow, Blue or Grey
Part NumberI.D. InchesO.D. InchesMAX W.P. (PSI)Approx. Wt. Per. Ft. Lbs.
HMP025PA-COLOUR1/40.53000.08
HMP031PA-COLOUR5/160.6253000.13
HMP037PA-COLOUR3/80.6253000.11
HMP050PA-COLOUR1/20.8133000.18
HMP062PA-COLOUR5/80.9062500.19
HMP075PA-COLOUR3/41.1252500.30
HMP100PA-COLOUR11.4062500.41
