Air

EPDM

NORTH DAKOTA PART NUMBER
HMPxxxT1
Application
A very economical general service air and water hose. It can be used in numerous industrial, agricultural and construction applications where oil is not a factor.
Construction

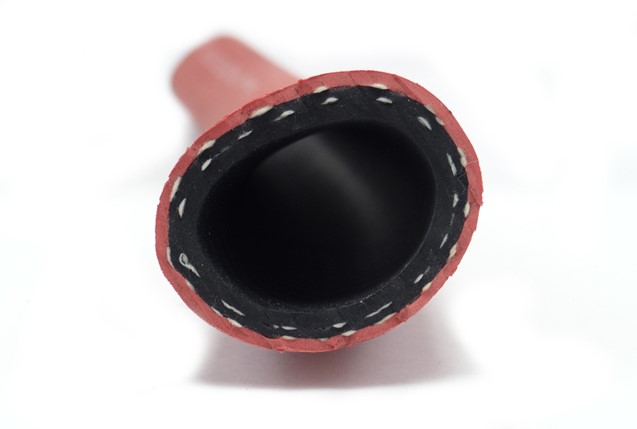

Tube- EPDM. Reinforcement- Spiral Polyester Yarn. Cover-EPDM.
Temperature Range
-40°C to +100°C (-40°F to +212°F)
Colour
Red or Black
Notes
1/4"-3/4" Available in 200psi, 250psi & 300psi
Part NumberI.D. InchesO.D. InchesMAX W.P. (PSI)Approx. Wt. Per. Ft. Lbs.
HMP025T11/40.501500.09
HMP037T13/80.691500.16
HMP050T11/20.811500.20
HMP062T15/80.941500.24
HMP075T13/41.131500.34
HMP100T111.431500.43
HMP125T11-1/41.781500.81
HMP150T11-1/22.031500.95
HMP200T122.501501.13
