For conveying oil, gasoline, fuel oil and other petroleum derived products. This hose is non conductive.

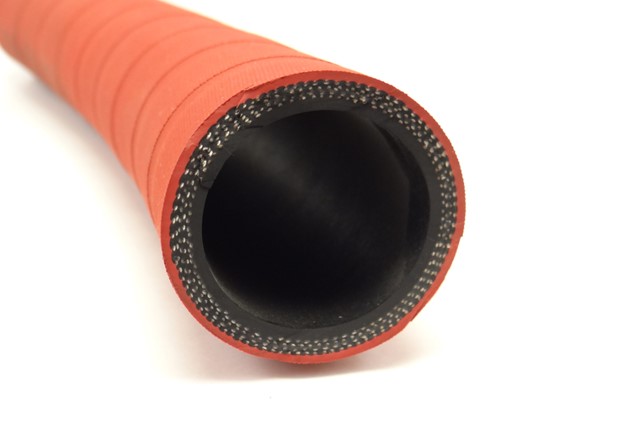

Tube- Oil resistant black nitrile. Reinforcement- layers of spiralled synthetic yarn. Cover- Red oil and abrasion resistant nitrile/PVC blend.
-29°C to +82°C (-20°F to +180°F)
| Part Number | I.D. Inches | O.D. Inches | MAX W.P. (PSI) | Approx. Wt. Per. Ft. Lbs. |
| HFD025GA | 1/4 | 0.63 | 300 | 0.18 |
| HFD037GA | 3/8 | 0.72 | 300 | 0.20 |
| HFD050GA | 1/2 | 0.88 | 300 | 0.27 |
| HFD075GA | 3/4 | 1.16 | 300 | 0.43 |
| HFD100GA | 1 | 1.43 | 300 | 0.65 |
| HFD125GA | 1-1/4 | 1.78 | 250 | 0.75 |
| HFD150GA | 1-1/2 | 2.03 | 250 | 0.88 |
