ULTRA CHEM
NORTH DAKOTA PART NUMBER
HCXXXTUC
APPLICATION
The UHMW tube provides an extremely flexible chemical suction and discharge hose that will handle 98% of all common industrial chemicals. Suitable for full vacuum.

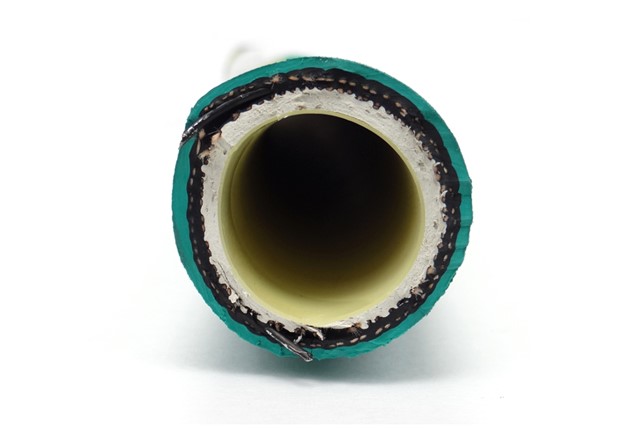

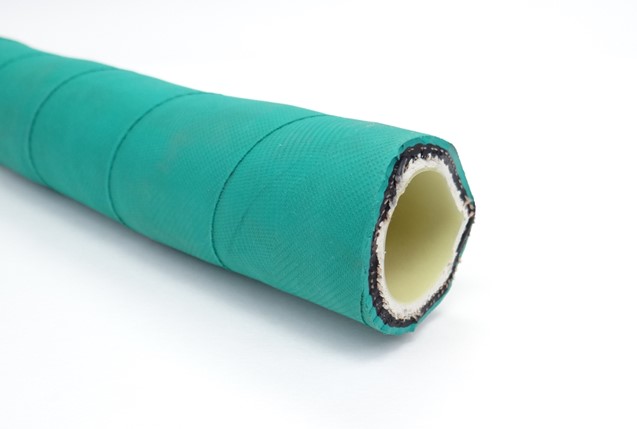

CONSTRUCTION
Tube- Ultra high molecular weight polyethylene (UHMW)
Reinforcement- Multiple synthetic textile cords and a dual wire helix

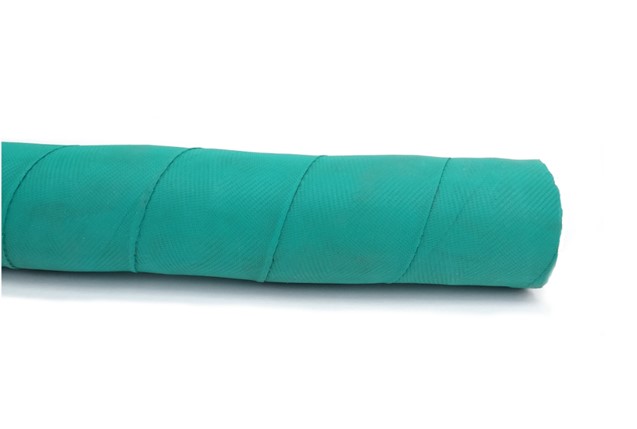

Cover- Green EPDM
TEMPERATURE RANGE
-40°C to +°121C (-40°F to +250°F)
NOTES
Reduced pressure ratings are advised when handling hot, extremely corrosive chemicals.
Working pressures shown are based on using a permanent type coupling such as swage or internally expanded.
For banded type couplings, the working pressure should be reduced to 65% of the pressures listed above.
| Part Number | I.D. Inches | O.D. Inches | MAX W.P. (PSI) | BEND RADIUS | Approx. Wt. Per. Ft. Lbs. |
| HC100TUC | 1 | 1.47 | 250 | 4 | 0.53 |
| HC125TUC | 1-1/4 | 1.78 | 250 | 4 | 0.75 |
| HC150TUC | 1-1/2 | 2.08 | 250 | 4 | 0.96 |
| HC200TUC | 2 | 2.58 | 250 | 6 | 1.3 |
| HC300TUC | 3 | 3.66 | 200 | 9 | 2.09 |
